Electrical and media floor tanks

Underfloor distributors with sockets, water, sewage, compressed air ...

Also referred to as floor-box, floor-distributor, socket-distributor, floor-tank, floor-socket, or underfloor-tank, with electrical sockets, distributors, antenna and media sockets, compressed air connections, water and sewage connections as underfloor distributors for indoor areas such as residential buildings, canteens, shopping malls or industry, as well as for outdoor areas such as gardens, marketplaces, railway stations or airports. Standard dimensions are from 300 x 300 x 120mm to 600 x 600 x 600mm. The lid is made from 15mm high grade steel and are watertight to grade IP68 (complete continuous submersion). Surcharge (superimposed load) is structurally factored up to 40 tonnes. All our floor tanks are individually manufactured to the tiling and/or flooring thickness of each construction project. Assembly with StarConnex modules offers interchangeability and the option to combine required fittings of all industry sectors and manufacturers with each other.

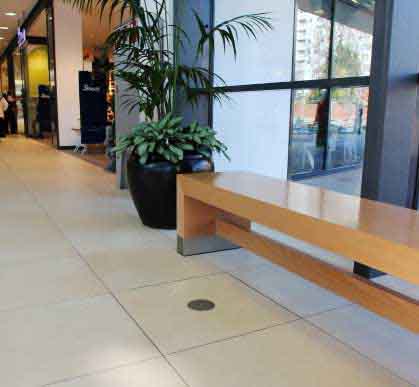

Tailed StarConnex Floor-Tank in a Shopping Mall



We offer this type of construction under the designation floor tank or stainless steel floor tank, generally also known as underfloor tank, underfloor distributor, floor socket, or floor electrics. Due to the possibility of connection to screed ducts and the modular equipment the use remains flexible in the long term. Sockets such as British Standard, German/Austrian, Swiss, Belgian/French and US-American standard can be freely combined, different circuits can be spatially separated. As pure media tanks, we offer versions with hole patterns, for example for Neutrik D-Form. For underfloor heating systems we offer floor tanks with heating distributors or pre-equipped for this purpose. Our wide range of cable socket covers offers fixtures suitable for every installation scenario.

FLOOR TANKS Size 300 x 300 mm

TYPE
Floor Tank type TAMM
Floor-Tank type TAMM, with European and US/CA receptacles

DIMENSIONS:

L 300 / W 300 / H 150 mm

Removable cover, IP68, wheel load 1-20 to.

3 places for assembly modules size M3 = 109 x 89 mm.

Version for electrical equipment. Combination with feed water is not possible with this size.

Outside and and in case of a water connection a drain module M3-321 is required. Behind the sockets, the space can be divided into sections for different voltages.
Available for mounting on raw concrete, on screed duct and in hollow floor.



Picture shows assembly example

TYPE
Floor Tank type TAMM

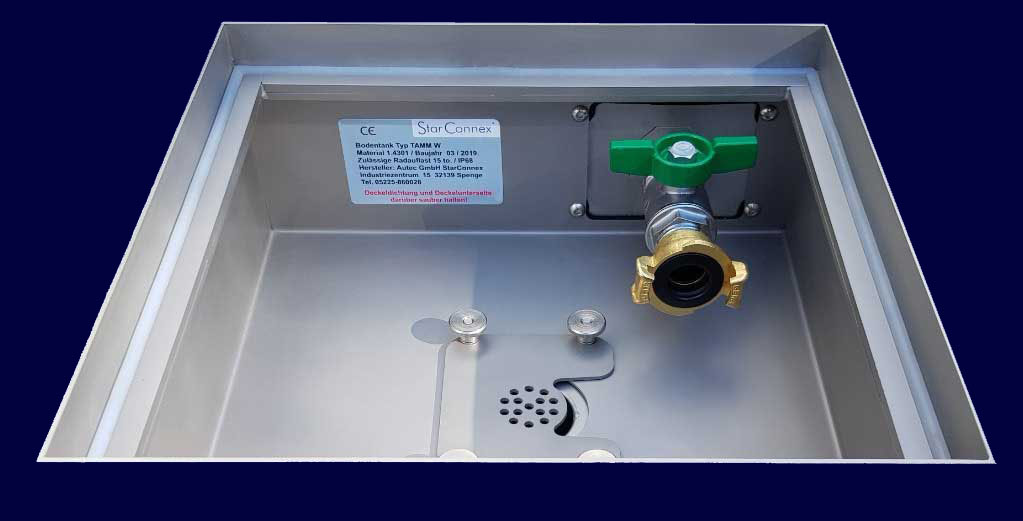

Floor Tank type TAMM with tap water en wastewater connection

DIMENSIONS:
L 300 / W 300 / H 120 mm

removable cover, IP68, wheel load 1-20 to.

1 slot for assembly module size 3 = 109 x 89 mm
(in the picture TAMM a flat version and only water and sewage)

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.



Picture shows assembly example

TYPE
Floor Tank type TAMM

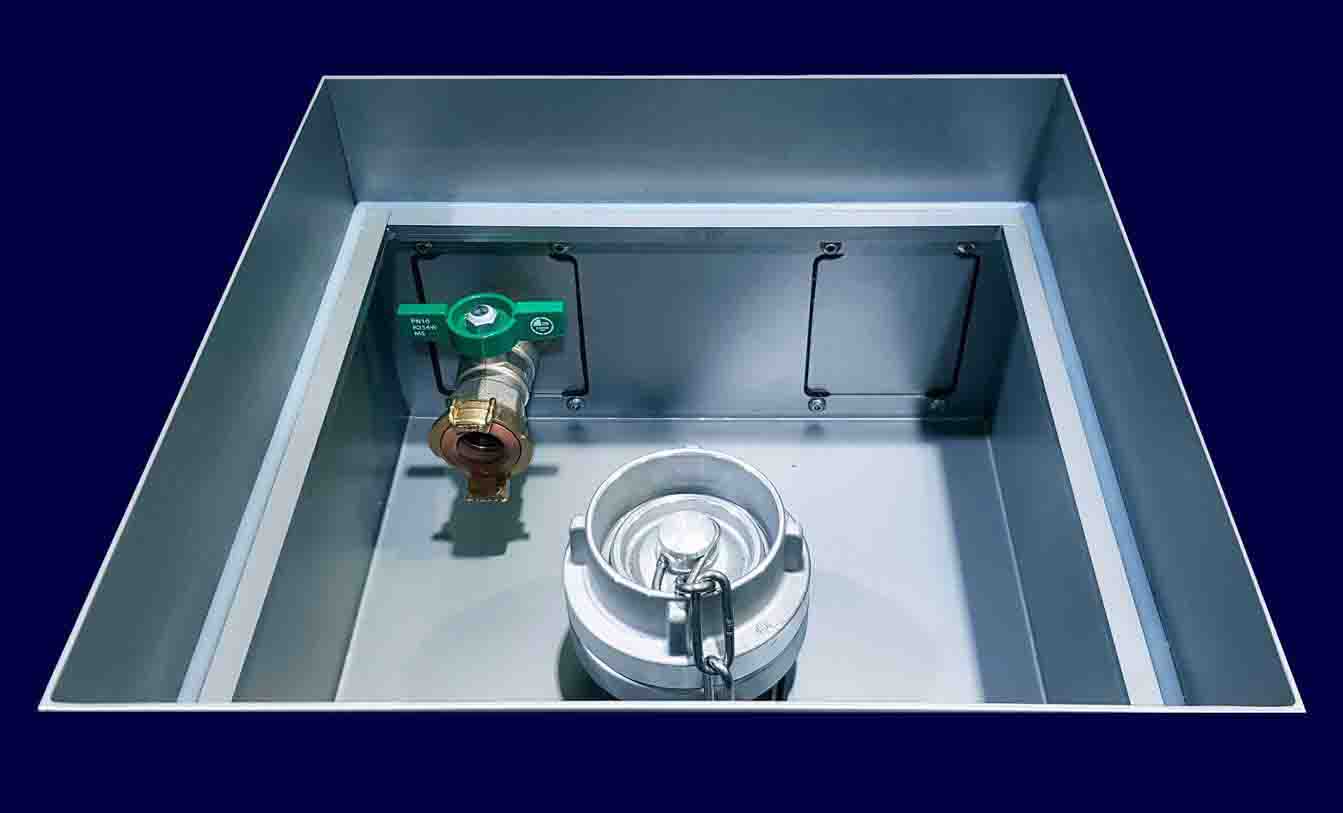

Stainless steel Floor-Tank type TAMM, tapwater 3/4 inch & wastewater-Storz-coupling 2 inches

DIMENSIONS:
L 300 / B 300 / height 150 mm

removable cover, IP68, wheel load 1-20 to.

2 places for assembly modules size 3 = 109 x 89 mm
In the picture TAMM version with Storz coupling for waste water, with connection thread 2" on the underside. 2 supply water connections are also possible.

INTERIOR AND EXTERIOR

Distance between module place and bottom tank wall opposite 296 mm.

Version for mounting on raw concrete. For mounting on screed channel or in hollow floor, the supply water connection can also be provided on the underside.

TYPE
Floor Tank type TELGTE
Floor-Tank small type TELGTE, up to 12 sockets, data sockets or compressed air connectors



DIMENSIONS:
L 300 / W 300 / H 150 mm

removable cover, IP68, wheel load 1-20 to. 6 places for assembly modules size 3 = 109 x 89 mm



Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

Picture shows assembly example

FLOOR TANKS Size 400 x 400 mm

TYPE
Floor Tank type UCHTE

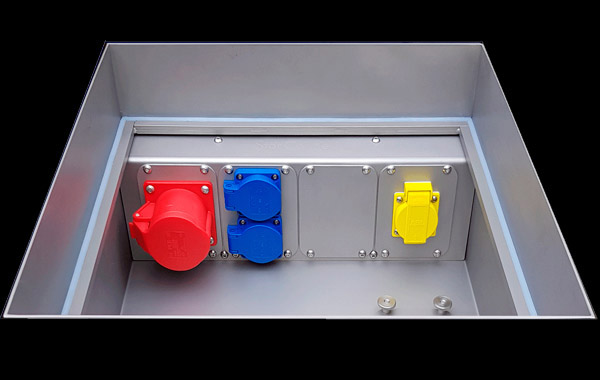

Floor Tank type UCHTE, up to 4x CEE 32 amps, execution for paved cover

DIMENSIONS:
L 400 / W 400 / H 150 mm

Removable or hinged cover, IP68, wheel load 1-20 to.
4 places for equipment modules size 3 = 109 x 89 mm
3 places when lid is hinged

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.



Picture shows assembly example

TYPE
Floor Tank type UELZE

Tender text
Floortank type UELZE, 8 modules with CEE-sockets, Single-pole-sockets, Neutrik-data-sockets

DIMENSIONS:
L 400 / W 400 / H 150 mm

Removable or hinged cover, IP68, wheel load 1-20 to.
8 places for equipment modules size 3 = 109 x 89 mm
6 places when the lid is hinged

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.



Picture shows assembly example

TYPE
Floor Tank type ULMEN

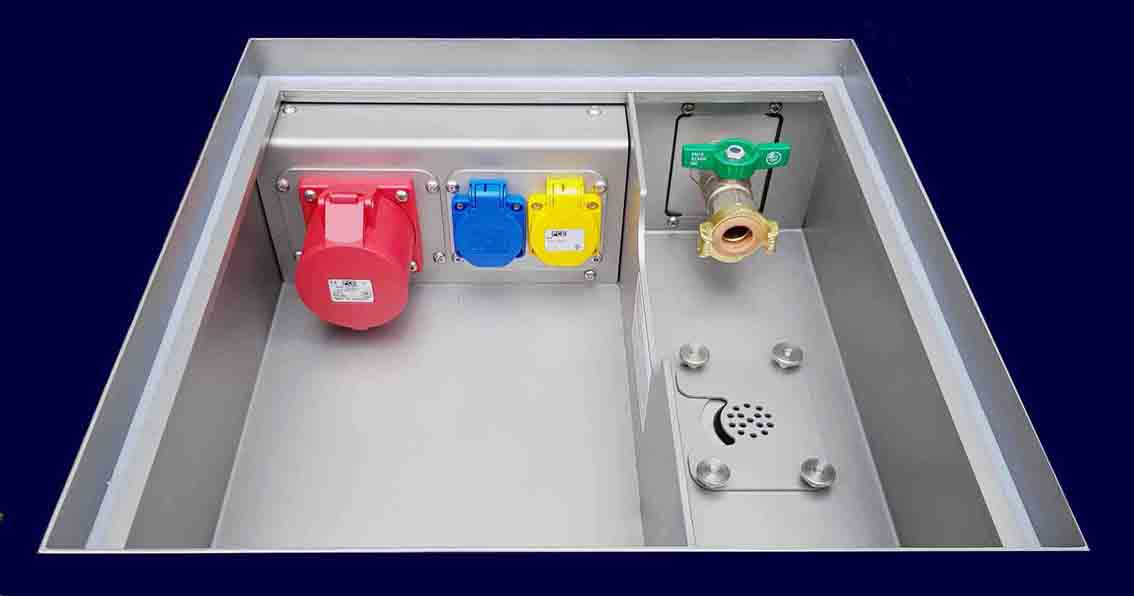

Floor tank type ULMEN with sockets, supply water and waste water connection

DIMENSIONS:
L 400 / W 400 / H 150 mm

Removable cover, IP68, wheel load 1-20 to.
2 places for equipment modules size 3 = 109 x 89 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2  fresh water modules or 1 distribution module 18 TE

Hinged lid is not possible here



Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

Picture shows assembly example

TYPE
Floor Tank type UMKIRCH

Tender text
Floor Tank type UMKIRCH, 4 power / data modules and a separate compartment for distributor or tapwater/wastewater

DIMENSIONS:
L 400 / W 400 / H 150 mm

Removable cover, IP68, wheel load 1-20 to.
4 places for equipment modules size 3 = 109 x 89 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module 18 TE

Hinged lid is not possible here

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type UNDELOH
Floor-Tank type UNDELOH, 400 x 400 x 250 mm, 6 modules up to CEE 32 A

DIMENSIONS:
L 400 / W 400 / H 250 mm

Removable or cover, IP68, wheel load 1-20 to.
6 to 7 places for equipment modules size 3 = 109 x 89 mm

4 places when the lid is hinged





Outside a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.



Picture shows assembly example

TYPE
UNNAU
no picture

DIMENSIONS:
L 400 / W 400 / H 250 mm

Removable or hinged cover, IP68, wheel load 1-20 to.
12 places for equipment modules size 3 = 109 x 89 mm

8 places when the lid is hinged

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type URSBERG
Floor Pit type URSBERG, 4 power-socket modules, 2 water modules, sewage module

DIMENSIONS:
L 400 / W 400 / H 250 mm

Removable cover, IP68, wheel load 1-20 to.
4 places for equipment modules size 3 = 109 x 89 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module 18 TE

Hinged lid is not possible here



Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type USEDOM
no picture

DIMENSIONS:
L 400 / W 400 / H 250 mm

Removable cover, IP68, wheel load 1-20 to.
8 places for equipment modules size 3 = 109 x 89 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module 18 TE

Hinged lid is not possible here

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

FLOOR TANKS Size 500 x 500 mm

TYPE
Floor Tank type VACHA
Floor-mounted electric tank type VACHA, up to 5 CEE power sockets 32 amps

DIMENSIONS:
L 500 / W 500 / H 150 mm

Removable or hinged cover, IP68, wheel load 1-20 to.
5 places for equipment modules size 3 = 109 x 89 mm

4 places when the lid is hinged

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.



Picture shows assembly example

TYPE
Floor Tank type VAHLDORF
no picture

DIMENSIONS:
L 500 / W 500 / H 150 mm

Removable or hinged cover, IP68, wheel load 1-20 to.
10 places for equipment modules size 3 = 109 x 89 mm

8 places when the lid is hinged

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type VECHTA

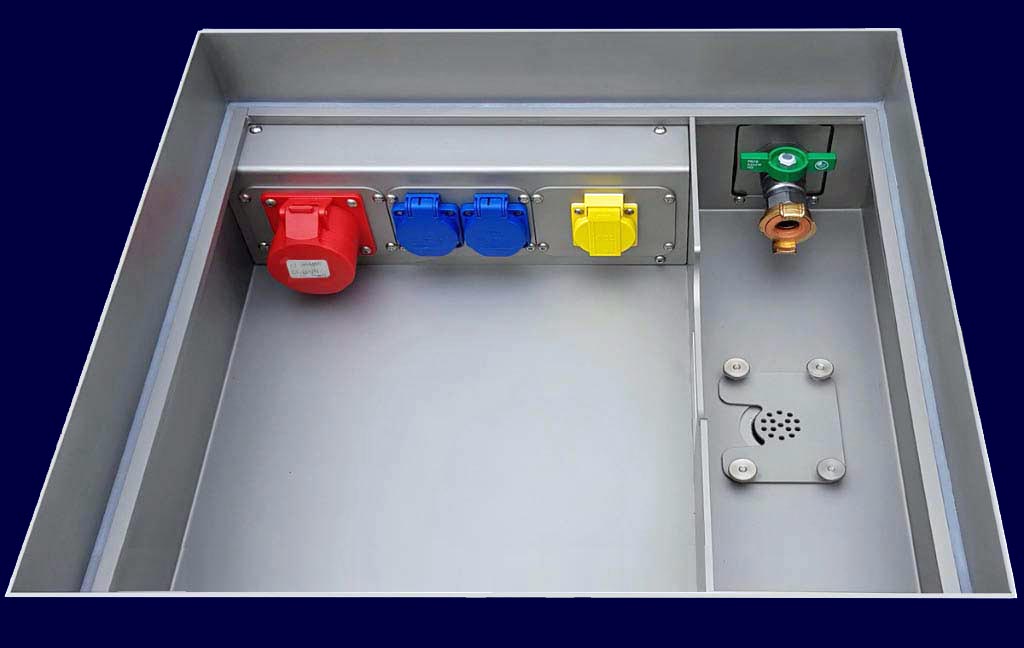

Floor Tank type VECHTA, truckproof, flood-water-tight, for paving, sockets, tapwater, wastewater

DIMENSIONS:
L 500 / W 500 / H 150 mm

Removable cover, IP68, wheel load 1-20 to.
3 places for equipment modules size 3 = 109 x 89 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module 18 TE





Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type VELGAST
Floor Pit type VELGAST, 6 variable socket modules, 1 or 2 tap water, wastewater connection, truck proof

DIMENSIONS:
L 500 / W 500 / H 150 mm

Removable cover, IP68, wheel load 1-20 to.
6 places for equipment modules size 3 = 109 x 89 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module 18 TE

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.



Picture shows assembly example

TYPE
Floor Tank type VELTEN

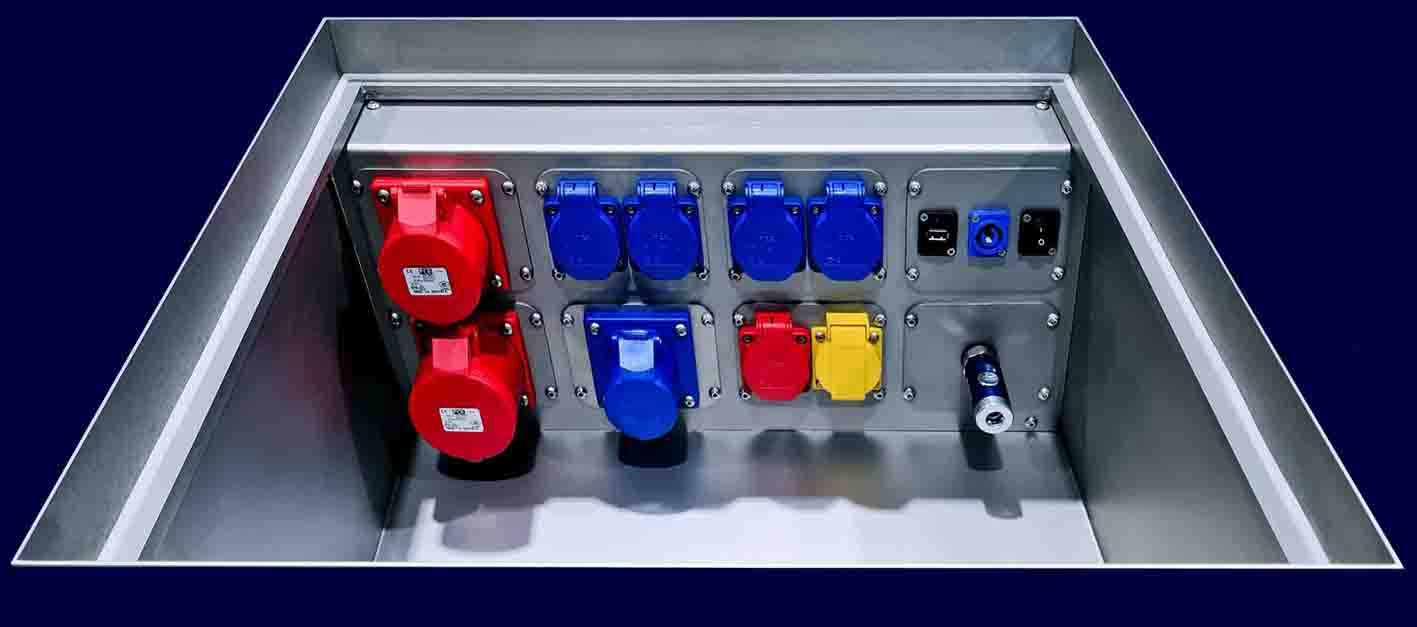

Floorpit type VELTEN with 8 variable equipment-modules size M3

DIMENSIONS:
L 5
00 / W 500 / H 250 mm

Removable or hinged cover, IP68, wheel load 1-20 to.

8 places for equipment modules size 3 = 109 x 89 mm

(6 places when the lid is hinged)



or 3 places for equipment modules size 4 = 169 x 126 mm

(2 places when the lid is hinged)

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type VERL
Floortank type VERL 8 modules with CEE, Schuko, data, Neutrik, compressed air

DIMENSIONS:
L 500 / W 500 / H 250 mm

Removable or hinged cover, IP68, wheel load 1-20 to.

16 places for equipment modules size 3 = 109 x 89 mm

(12 places when the lid is hinged)



or 6 places for equipment modules size 4 = 169 x 126 mm

(4 places when the lid is hinged)

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type VERSMOLD

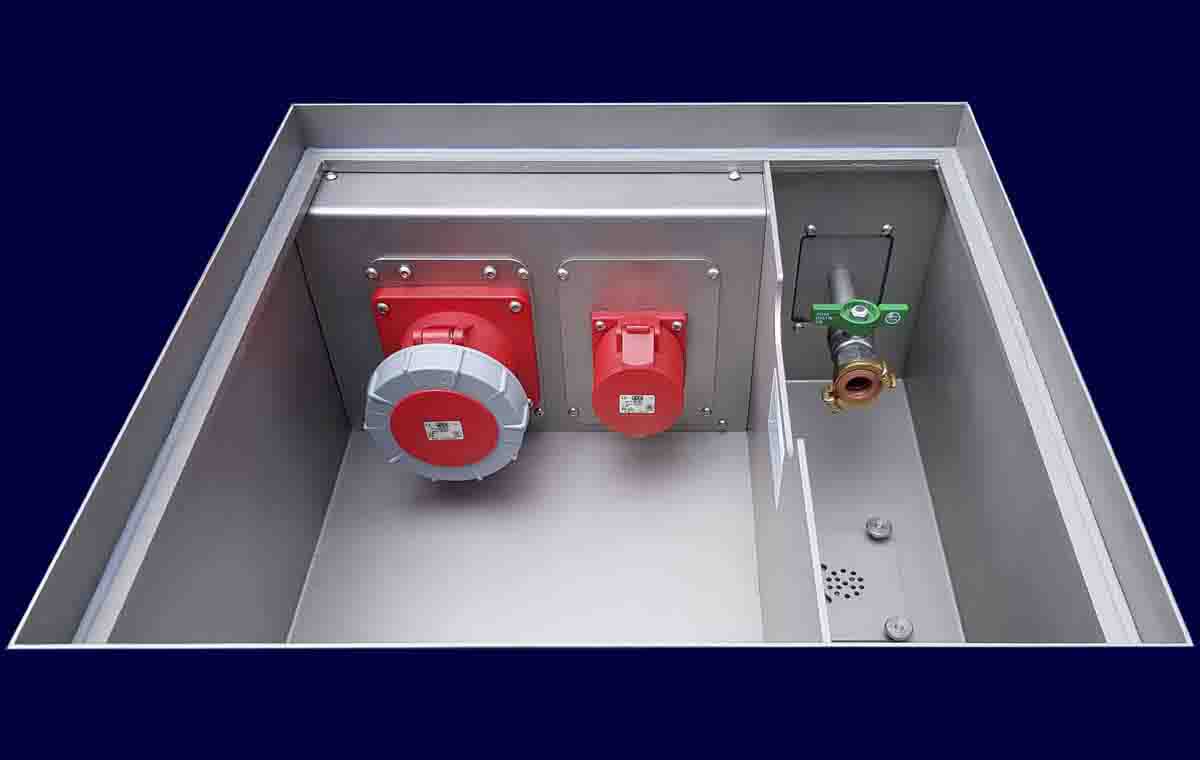

floor tank type VERSMOLD for sockets up to CEE 63A and tap water and waste water connection

DIMENSIONS:
L 500 / W 500 / H 250 mm

Removable or hinged cover, IP68, wheel load 1-20 to.

6 places for equipment modules size 3 = 109 x 89 mm

(4 places when the lid is hinged)

or 2 places for equipment modules size 4 = 169 x 126 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module 18 TE

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.



Picture shows assembly example

TYPE
Floor Tank type VORWERK
Underfloor tank type VORWERK, 2 modules M4 up to CEE 63A and up to 8 Schuko, distributor or 2 fresh water and waste water

DIMENSIONS:
L 500 / W 500 / H 250 mm

Removable or hinged cover, IP68, wheel load 1-20 to.

12 places for equipment modules size 3 = 109 x 89 mm

(8 places when the lid is hinged)

or 4 places for equipment modules size 4 = 169 x 126 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module 18 TE

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

FLOOR TANKS Size 600 x 600 mm

TYPE
Floor Tank type WACKEN
no picture

DIMENSIONS:
L 600 / W 600 / H 150 mm

Removable or hinged cover, IP68, wheel load 1-20 to.

6 places for equipment modules size 3 = 109 x 89 mm

4 places when the lid is hinged

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
WAGING

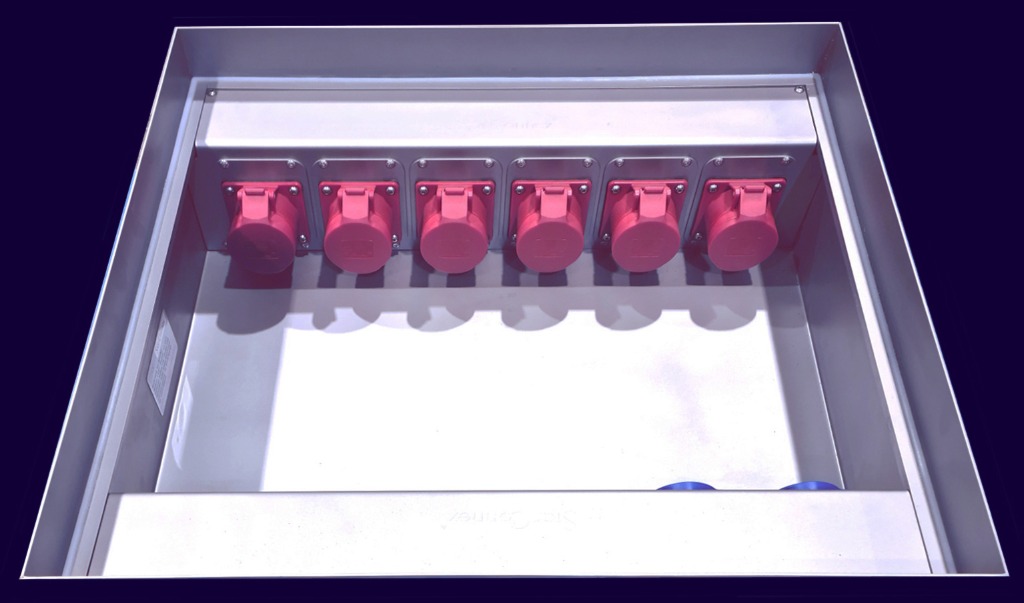

Stainless steel floor tank with 12 modules size M3

DIMENSIONS:
L 600 / W 600 / H 150 mm

Removable or hinged cover, IP68, wheel load 1-20 to.

12 places for equipment modules size 3 = 109 x 89 mm

8 places when the lid is hinged

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type WEEDE

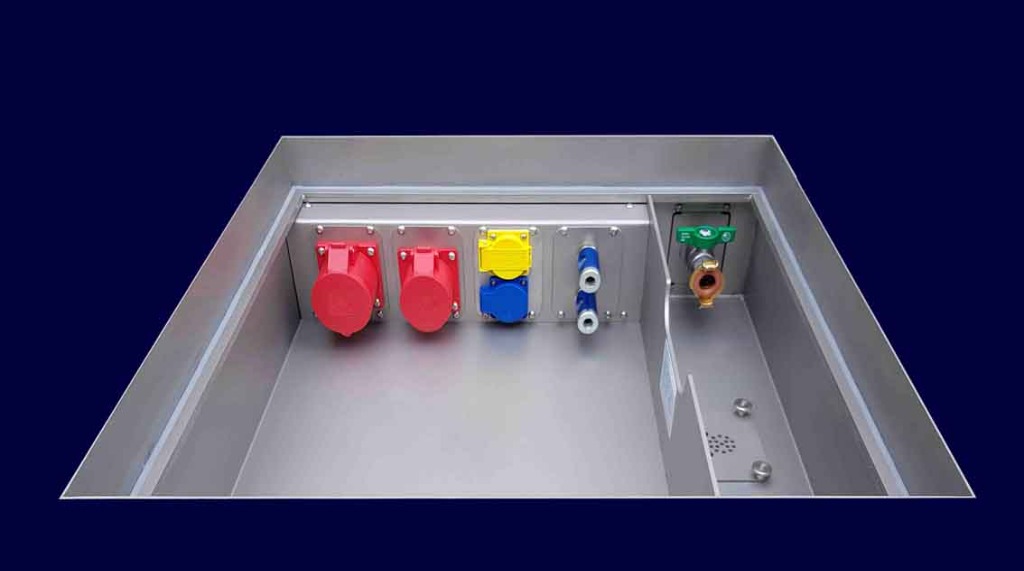

Combination floor tank with sockets, supply water and waste water

DIMENSIONS:
L 600 / W 600 / H 150 mm

Removable cover, IP68, wheel load 1-20 to.

4 places for equipment modules size 3 = 109 x 89 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module 18 TE

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type WEEZE
Underfloor-tank type WEEZE, 8 slots for modules size M3 up to CEE 32 amp, tap-water & wastewater

Removable cover, IP68, wheel load 1-20 to.

8 places for equipment modules size 3 = 109 x 89 mm or

4 laces for equipment modules size 4 = 169 x 126 mm

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

TYPE
Floor Tank type WOLFEN
Stainless-steel Floortank type WOLFEN, with sockets, data, vacuum, compressed air, distributor-.jpg

DIMENSIONS:
L 600 / W 600 / H 250 mm

4 places for equipment modules size 4 = 169 x 126 mm

The picture shows a special version without modules to accommodate more sockets.

2 places for modules 89 x 109 mm in separate compartment,
e.g. for 1 ot 2 fresh water modules or 1 distribution module 18 TE

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

Picture shows assembly example

TYPE
Floor Tank type WURZEN
Underfloor-Distributor type WURZEN, CEE up to 63 A, 19 inch Rack-Distributor, Tap-Water, Wastewater

4 places for equipment modules size 4 = 169 x 126 mm

The picture shows a special version with two separate compartments:

2 places for modules 89 x 109 mm in separate compartment,
for 1 ot 2 fresh water modules

and

2 places for modules 89 x 109 mm in separate compartment,
for 1 distribution module 18 TE

Outside and and in case of a water connection a drain module M3-321 is required.
Available for mounting on raw concrete, on screed duct and in hollow floor.

Picture shows an assembly example. From 2020, distributors in StarConnex Floor Tanks are generally designed as IP68 waterproof welded 19" racks if they are destined for outdoor use, as shown here.

Do you have any questions? Please do not hesitate to contact us

back
