Interior floor tank examples
Floor tanks are set flush into floor screed thus offering an unobtrusive and road-safe method of supplying large areas with energy, data, water and other media.
The standard dimensions of StarConnex floor tanks are BT300 (300 x 300mm), BT400 (400 x 400mm), BT500 (500 x 500mm) and BT600 (600 x 600mm). The standard heights are 165 and 250mm. We recommend a hinged lid for floor tanks upwards of BT500 requiring regular access.

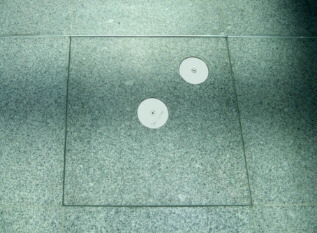

Floor tank 600 x 600 mm,
Lid covered with black granite,
with round inner cover for cable outlet

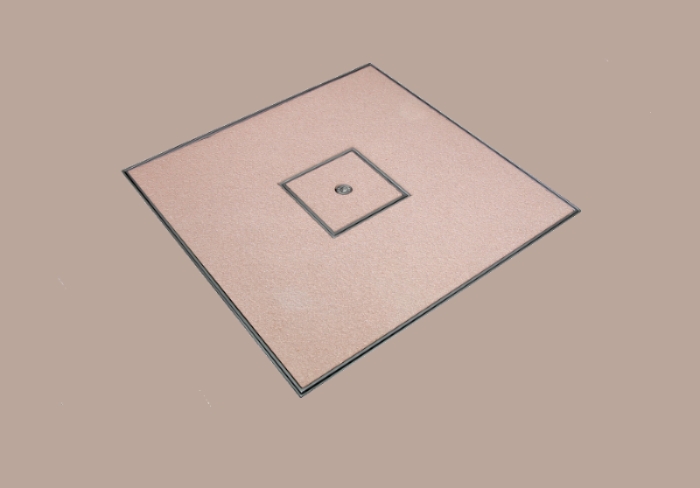

Floor tank 400 x 400 mm, lid covered with cast stone tile, with square inner lid for cable outlet
Bodentank 600 x 600 mm,
Deckel mit schwarzem Granit belegt,
mit rundem Innendeckel.

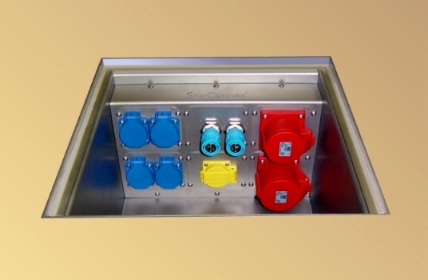

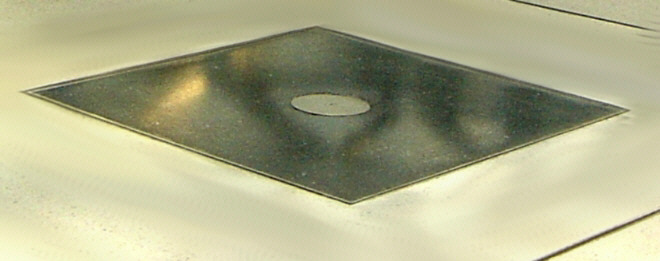

Floor tank 400 x 400 mm, 150 mm high up to top edge of stainless steel lid, one-sided assembly modules. Flat lid seat for stainless steel lid without tiling

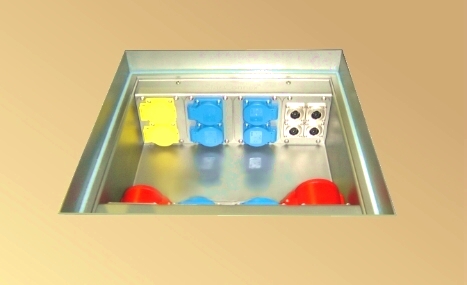

Floor tank 400 x 400 mm, 150 mm high up to the top edge of the stainless steel lid, double-sided assembly modules.

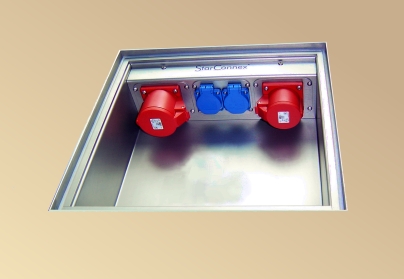

Floor tank 400 x 400 mm, 250 mm high up to the top edge of the stainless steel lid, one-sided assembly modules on top of each other. Flat lid seat for stainless steel lids without tiling

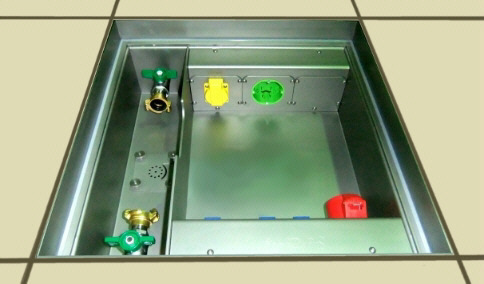

Floor tank 600 x 600 mm, 150 mm high up to the top edge of the stainless steel lid, two-sided assembly modules, separate compartment with two-sided water supply 3/4"

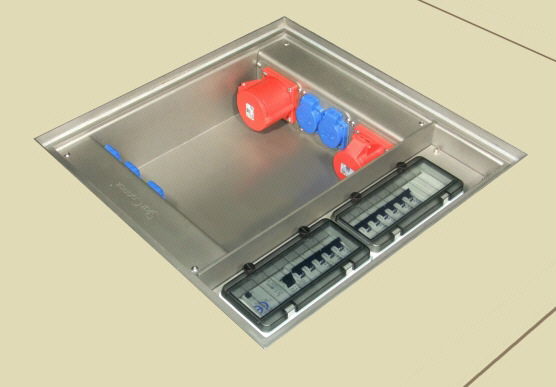

StarConnex floor tank with sockets and distributor, 500 x 500 mm,150 mm high up to top edge of stainless steel lid,t wo-sided socket modules, lid seat flat for stainless steel lid without tiling, separate compartment with 20 divider units Distributor
