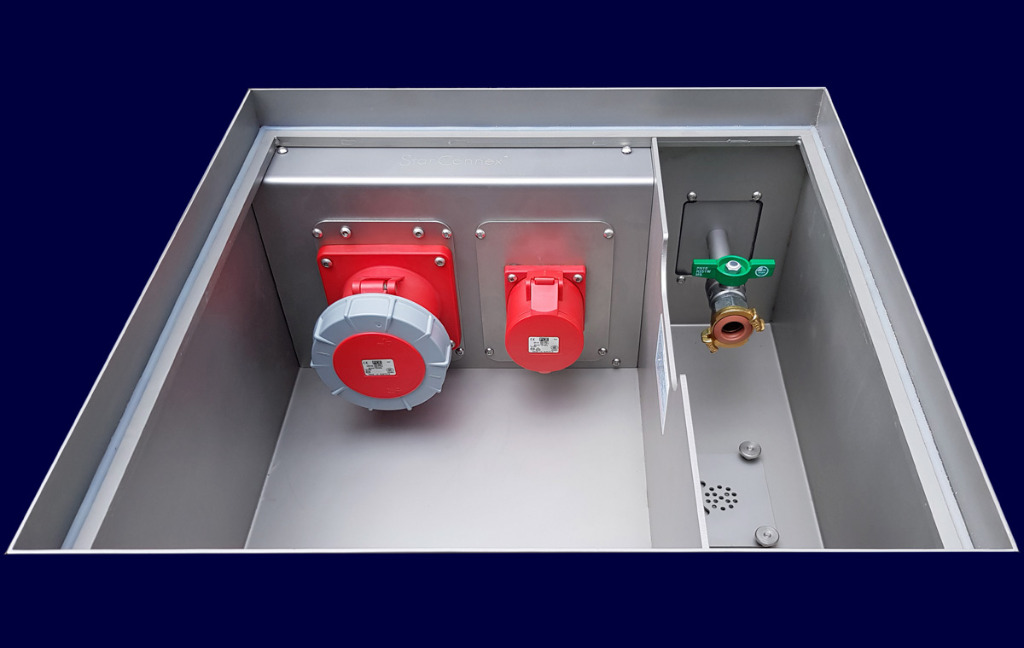

19"-Floor Tanks & Floor Pits

When 19" racks need to be accommodated in stages, hollow floors, hangar floors or outdoor areas, StarConnex 19" tanks offer the best conditions. Watertight welded stainless steel housings with optional hinged lids for 13 to 26 U are the solution for any 19" technology in the floor.



TYPE
BEND

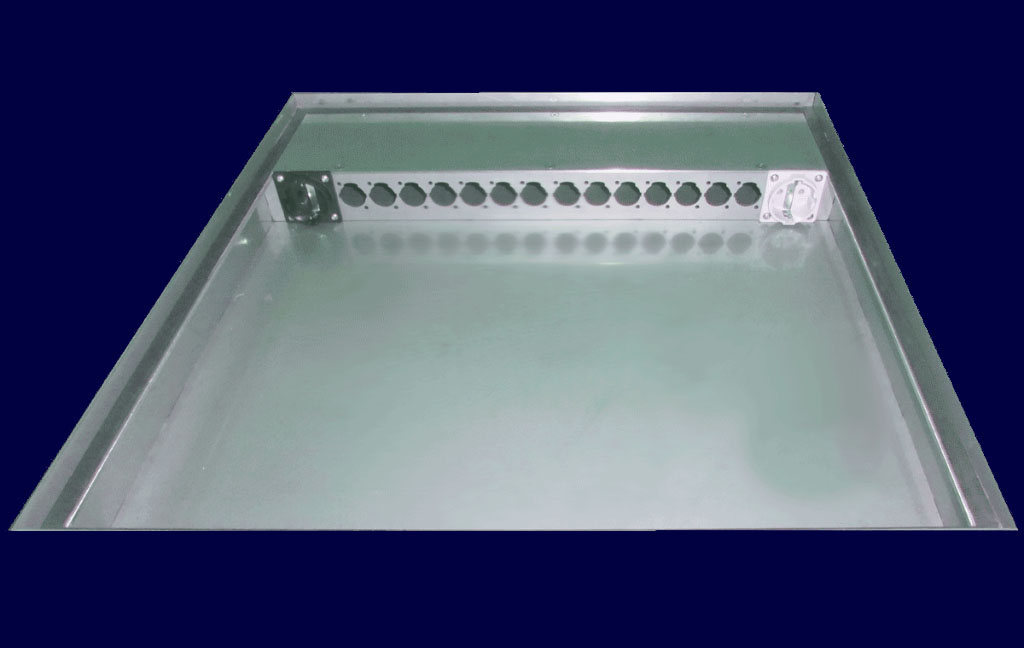

Stainless steel floor tank 19"-system 1U with Neutrik D-shape hole patterns

DIMENSIONS:

600 x 600 mm (23.62") / height 85 mm (3.35")
Hole grid for 1 U / depth 100 mm (4")

Connector direction horizontal
Car-proof and closed waterproof IP68

Fig. shows example with 2 sockets and front panel with 14 hole patterns Neutrik D-shape



Lateral feed lines, stepped nipple or IPON cable glands or glands for flexible conduits max. M32

TYPE
BILLINGS

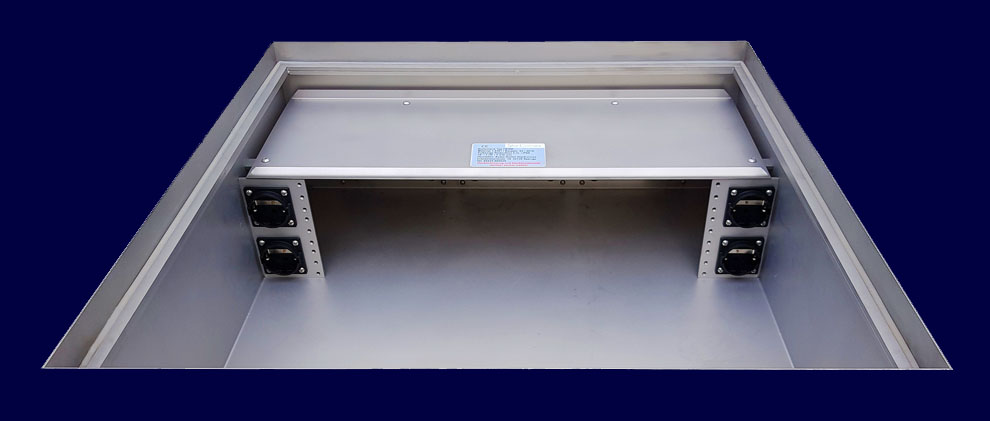

Floor tank for 19 inch rack 3U

DIMENSIONS:

600 x 600 x 200 mm (23.62" x 23.62" x 7.87")
Hole grid for 19" 3 HE / depth 200 mm (7.87")
Plug direction horizontal
Car-proof and closed waterproof IP68
Figure shows example with 4 sockets, without rack

Lateral feed lines Step nipple or IPON cable glands or glands for flexible conduits max. M32

TYPE
BOSTON

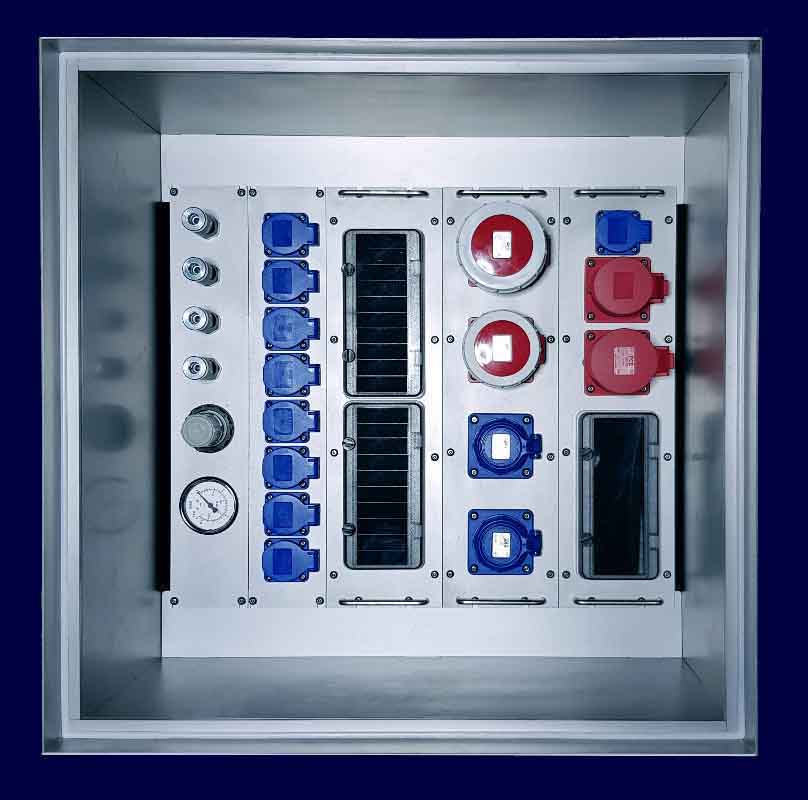

19 inch floor tank waterproof 13U up to 125A

DIMENSIONS:
600 x 600 mm / height 600 mm

Hole grid for 13 HEMaterial Stainless steel lid hinged or removable, truck-proof and closed watertight IP68

Fig. shows assembly example, also available without assembly

Supply lines at the bottom on the side or underside via wall bushings, IPON cable glands, or connecting pieces for DN50 (2" i.d.) or DN110 (4.25" i.d.) empty conduits

TYPE
BOSTON
StarConnex floor tank 19 inch lid hinged

DIMENSIONS:

600 x 600 mm / height 600 mm

Perforated grid for 13 HE, in wider version up to 26 HE

Material stainless steel

Lid hinged and gas spring supported, truck-proof and closed waterproof IP68

Fig. shows equipment example, also available without equipment

This floor tank, called Floor Pit in the aviation industry, is predestined as a universal floor supply unit in hangars, research and industry, as well as in outdoor areas for marketplaces and event areas of any kind, due to its modular equippability with 19" racks of all manufacturers.

Supply lines at the bottom laterally or at the bottom via wall bushings, IPON cable glands, or nozzles for empty conduits DN50, DN110, DN150 or DN200.

19" Racks

StarConnex-19" stainless steel racks are available in IP54, IP66 and waterproof IP68, empty or individually equipped to meet specific needs. Cable entries are available as standard at the rear via IPON glands, empty conduit connections, feed-through terminals or connectors.

TYPE
StarConnex 19" Module-Rack
19 inch rack 3U for modular assembly

DIMENSIONS:
B 19" / H 3 height units / depth 90 mm (3.54")

Front panel with 5 assembly modules size M3

Fig. shows assembly example.

Rear: 4 supply line modules size M3 or cable glands or waterproof connectors
The housings are welded waterproof.


1 CEE 63A/5, 1 CEE 32A/5, 1 CEE 16A/3, 2 sockets 16A/3 IP54 b, 1 socket 16A/3 P54 r, 2 RJ45 C6 y

TYPE
StarConnex 19" CEE-Rack

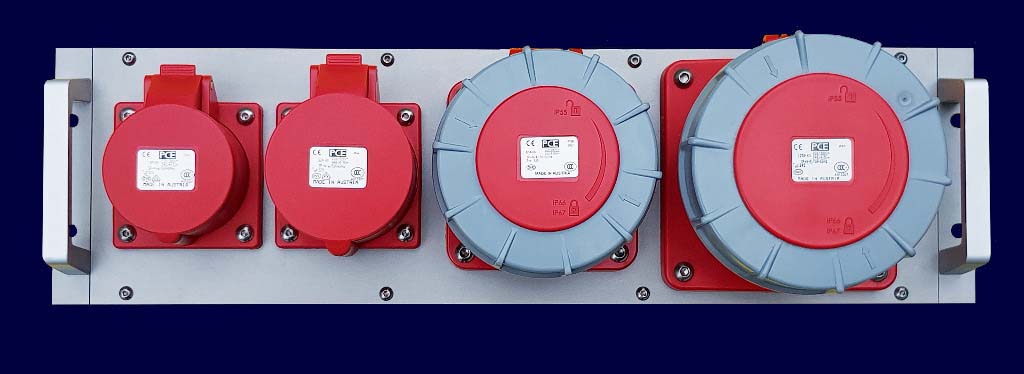

19 inch power rack with CEE sockets up to 125 amp

DIMENSIONS:
B 19" / H 3 height units / depth 90 mm (3.54")

Front panel with direct mounting without modules

Fig. shows assembly example.

The housings are waterproof IP68 welded. Connections at the rear can be implemented as terminal blocks or waterproof Harting connectors.


1 CEE 16A/5, 1 CEE 32A/5, 1 CEE 63A/5, 1 CEE 125A/5

TYPE
StarConnex 19" Distribution Rack

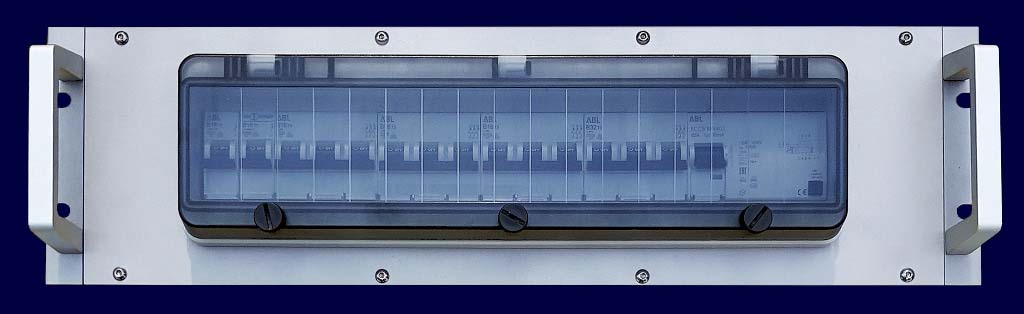

Stainless steel distribution rack 19 inch 3 hu 23 div. with hinged window 18 div.

DIMENSIONS:
B 19" / H 3 height units / depth 90 mm (3.54")

Distribuion rack für max. 22 partition units



Fig. shows assembly example.

Rear: up to 4 supply line modules size M3 with cable glands or waterproof connectors, optionally directly in the rear panel.
The housing is IP68 waterproof, the hinged windows are IP66 or IP68


Standard rail distribution board 18 TE with RCD switch and miniature circuit breakers

TYPE
StarConnex 19" Rack IP68

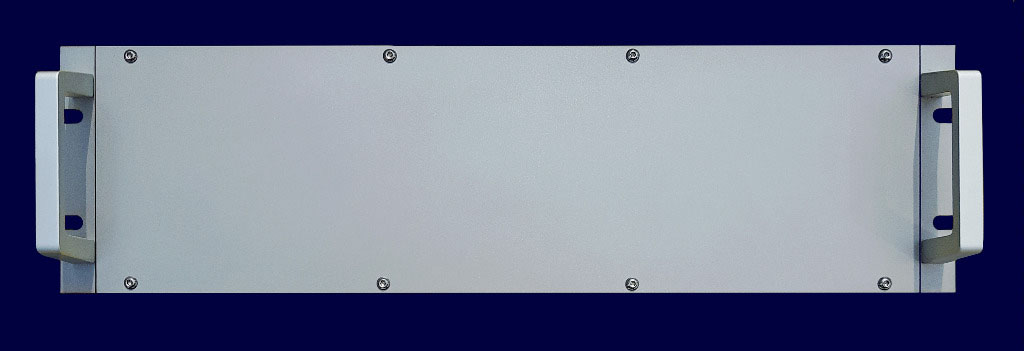

Empty 19"-rack with front panel 3-hu, stainless steel, waterproof IP68

DIMENSIONS:
B 19" / H 3 height units / depth 90 mm (3.54")





Empty rack, suitable for 1 or 2 NH switch disconnectors 100 A or customer-installed components

TYPE
StarConnex 19" Druckluft-Rack

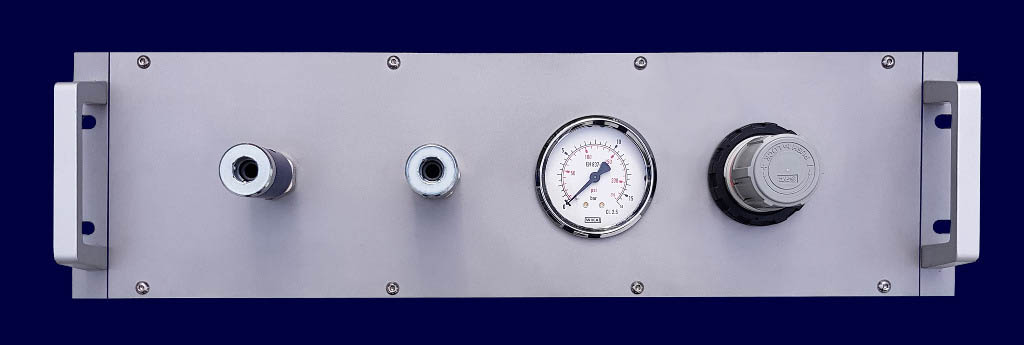

19 inch compressed air rack with regulator, pressure indicator and safety air couplings

DIMENSIONS:
B 19" / H 3 height units / depth 90 mm (3.54")

Various rack heights available

Compressed air supply rack

Various configurations available

Pressure regulator, pressure gauge, compressed air safety couplings

Fig. shows assembly example.

Do you have any questions? Please do not hesitate to contact us.
