Round Floor Sockets COMPACT

Floor sockets of the COMPACT series are round and specially designed for outdoor applications. They consist of a PVC housing with a cover seat made of hardened cast light metal, a stainless steel cover with cable outlet cover and an internal height-adjustable stainless steel mounting plate with the required equipment. The housings are optionally open on the underside for insertion into on-site empty conduit systems DN100/DN200 or closed on the underside with watertight cable glands. Due to the exchangeable mounting plates, the equipment can be changed at any time. 15 mm thick stainless steel covers are used with wheel loads of up to 20 tons. The large circumferential cast flange dissipates high loads into the ground and distinguishes the COMPACT floor sockets by the possibility of attaching sealing foils to it. They are closed waterproof IP68 by a silicone seal in the lid seat. A central smaller inner lid can be removed separately to allow the cables to pass through when using the sockets. On request, we can also supply these inner lids with a lateral cable groove so that the cable exit opening is only a few square centimetres large when in use. Furthermore, there are inner covers with a waterproof cable bushing, for example for Christmas trees or garbage compactors, or several waterproof cable bushings according to specifications, as well as cable domes with roofs for longer operation in the rain with any number of cables. In addition, temporarily mountable power columns are also available. The standard sizes are:



COMPACT100

112 mm cover diameter, total height optionally 125-250 mm, possible equipment 1 wsd, double data or antenna socket.

COMPACT200

220 mm cover diameter, total height 150-450 mm, possible equipment up to 5 Schuko sockets, or 1 Schuko socket and 2 CEE sockets 16 or 32 A, or 2 Schuko sockets and 1 CEE socket 16 or 32 A, or 1 CEE socket 63 A, or 1 water 3/4" with GK coupling. In some cases, a safety compressed-air coupling can be placed next to it. Double data sockets or antenna sockets can also be provided instead of Schuko sockets.

Bodensteckdose for Marriott Berlin

The proven floor socket for outdoor use. Truck-proof, high waterproof IP68, childproof, stainless, from 4 sockets, data, supply water up to a CEE 63 A receptacle. In our large range of cable outlet lids you will also find lids with a lateral cable groove and lids with waterproof cable bushings, for which the plugs on the cables naturally do not need to be removed for connection. An ideal solution for mobile counters, illuminated Christmas trees, waste paper presses and much more.

Ground socket for Christmas tree, garden grill, lawn mower

COMPACT100

120 mm cover diameter, total height optionally 125-250 mm, possible equipment 1 socket, double data socket or antenna socket.

Versions and dimensions

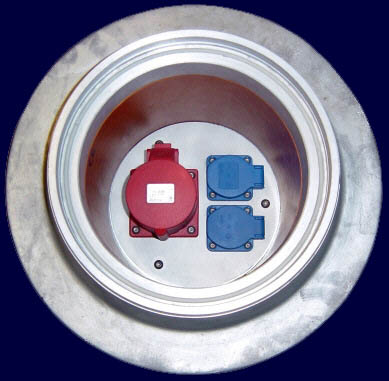

Floor socket for marketplaces, railroad stations, ports, schools, governments

COMPACT200

220 mm cover diameter, total height 150-450 mm, possible equipment up to 5 Schuko sockets, or 1 Schuko socket and 2 CEE sockets 16 or 32 A, or 2 Schuko sockets and 1 CEE socket 16 or 32 A, or 1 CEE socket 63 A, or 1 water 3/4" with GK coupling. In some cases, a safety compressed-air coupling can be placed next to it. Double data sockets or antenna sockets can also be provided instead of line sockets.

Versions and dimensions

Heavy duty floor socket with empty pipe connection up to DN200 mm

COMPACT200

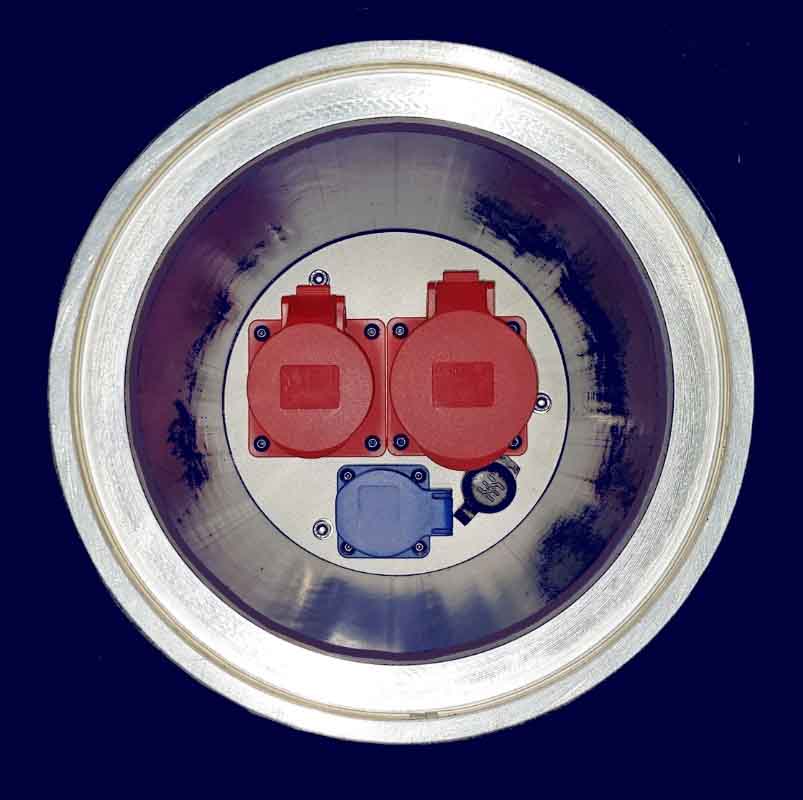

Version with 1 data socket RJ45 Cat 6, 1 Schuko 230V 16A, 1 CEE 400V 16A and 1 CEE 400V 32A.

Bottom side optionally closed or open for integration into empty conduit systems KG DN200. Also available without equipment as access to the empty conduit system.

Illustration: Version without load transfer flange, for installation in screed / concrete in indoor areas.

Recessed Floor socket with waterproof cable outlet

COMPACT200

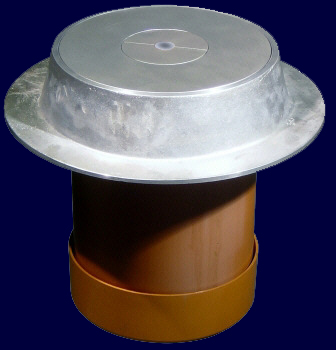

View with closed lid. The central cable outlet is a watertightly clamped inner cover, in the picture in split design for the watertight rejection of a cable. This inner cover version is also available for several cables.
