Particularly high-quality universal floor socket for indoor and outdoor use, can be driven over, can be closed high and pressurized waterproof IP68, a must also for all surfaces where wet cleaning machines are used. With 2 or 4 places for Schuko sockets or data sockets, for flush installation in screed/concrete, raised floor or ground, with all properties for demanding objects and highest mechanical as well as hygienic requirements. Schuko sockets are available according to German, English, Swiss, Belgian-French and North American standards. Minimum order quantity is 10 pieces. Even SUPER68 pavers already installed can be varied in many ways by means of mounting modules and a large range of lids. All covers presented here fit on the same SUPER68 housing.
Minimum order quantity 10 pieces
If high water resistance is not necessary, please also see type SQUARE ECO
The diameter is 114 mm, the height of the housing is 80 to 130 mm at choice. The base is IP44 welded, optional IP68. Up to 2 single phase sockets or optional data sockets. Also ideal as a garden socket and for terraces.
CIRCUIT114 floor sockets have vertical plug direction.
SUPER68 housings are located under the flooring, available with or without edging opposite the flooring. Lids are available in many designs, the lid diameter is only 112 mm, the housing height only 68 mm.

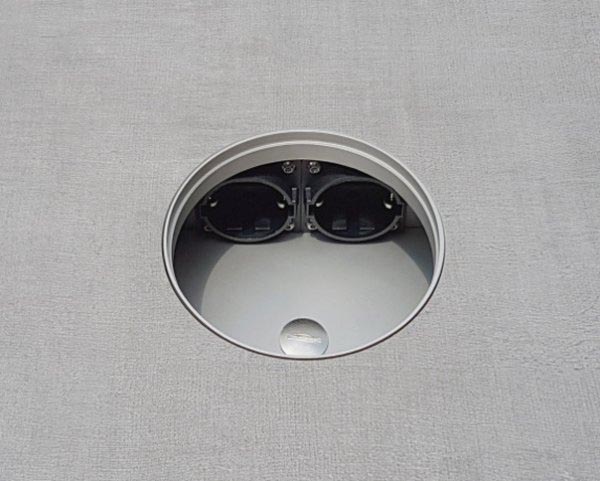

Housing with edging,
with 2 sockets # 0212
with 4 sockets # 0214

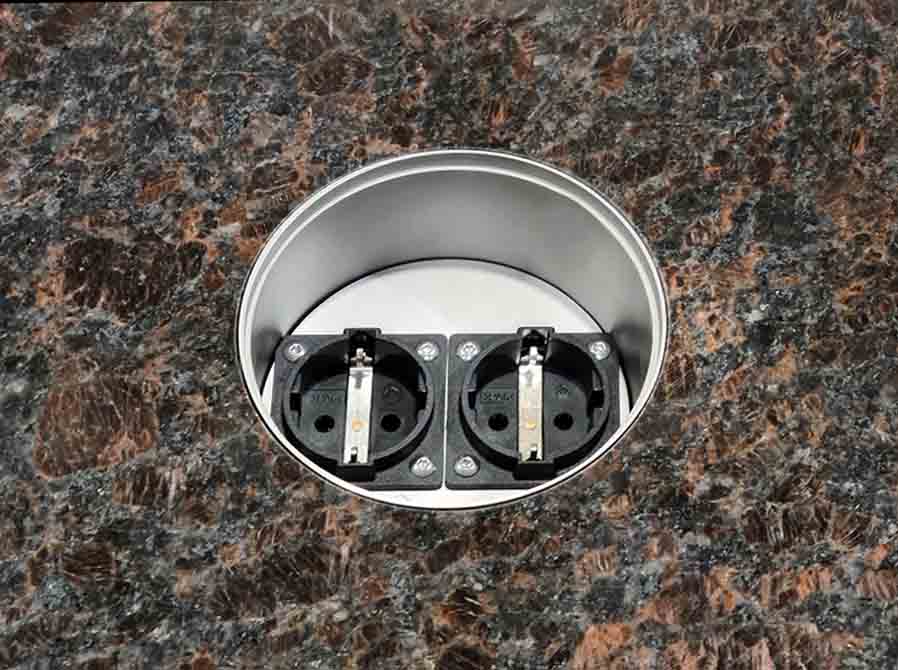

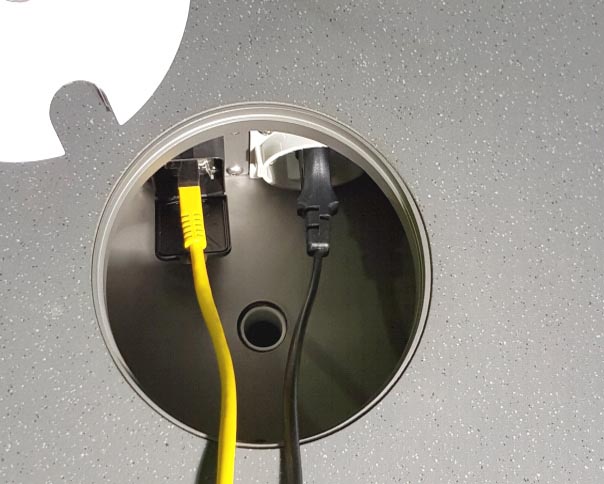

The sockets are on modules, available for all common European and North American UL listed 3-pole sockets.

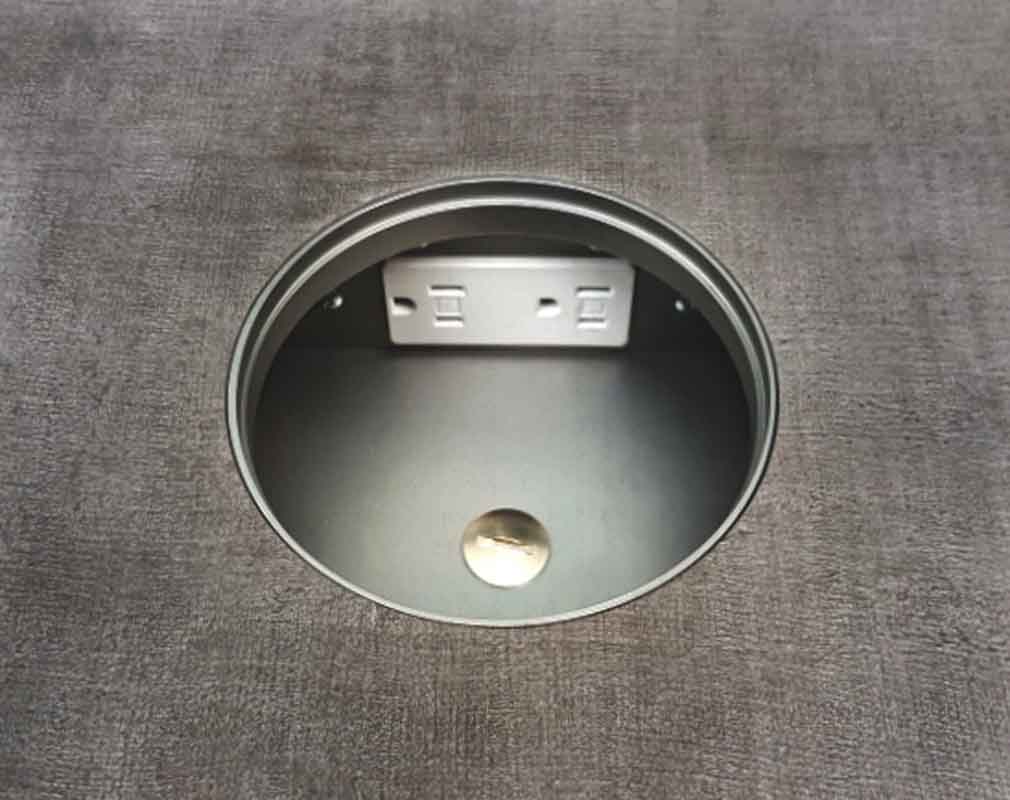

Housing with edging,
with 2 US sockets # 0212
with 4 US sockets # 0214
The standard solution, stainless steel, car proof and water tight IP68:
Stainless steel lid # 0000

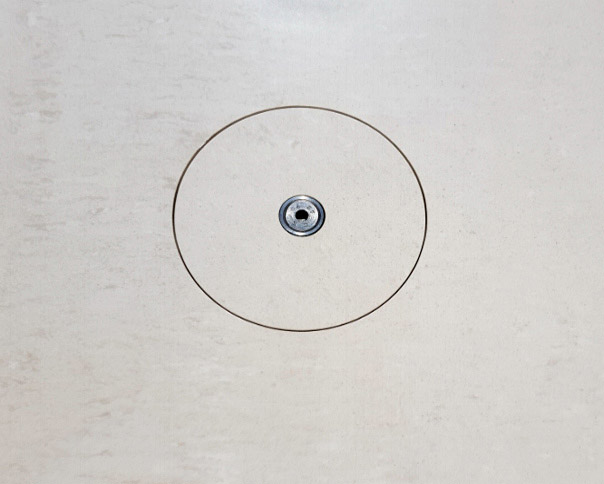

Tiled covers are even more inconspicuous. The height of the clamping screws in the watertight covers can be individually adjusted to the thickness of your floor covering. The SUPER68 can thus already be cast in the screed before the tile thickness is known. Watertight IP68.
Lid tileable # 0002

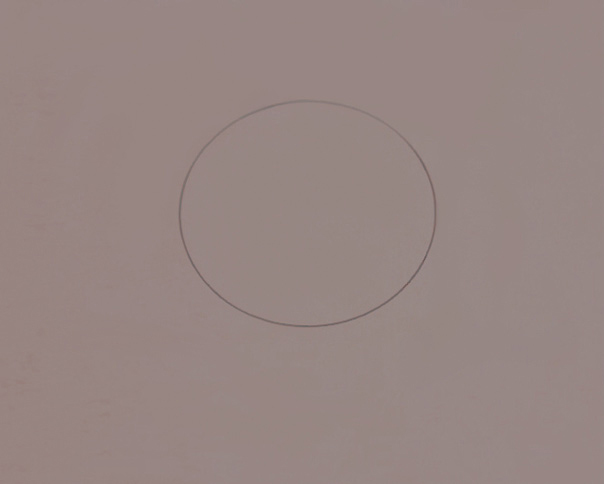

The most inconspicuous floor socket lids imaginable are covers without a clamping screw. However, dispensing with the clamping screw here also means dispensing with flood tightness. Watertight IP44.
Cover loosely inserted, tileable # 0001

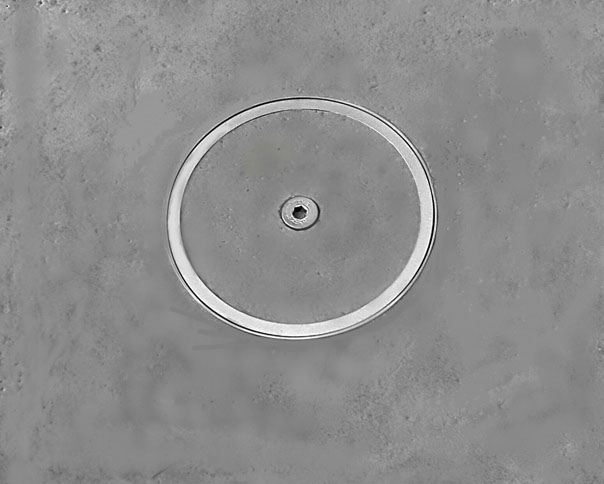

eed floor belongs to modern architecture. For this purpose, there are IP68 waterproof covers with floor covering edging. Optionally normal edging or wide design edge (picture).
Also suitable for liquid-applied plastic flooring and cast terrazzo.
Cover with edging, pourable # 0005

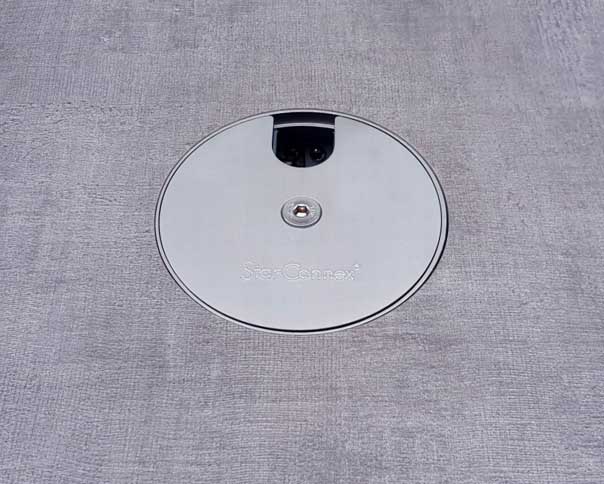

The great advantage of replaceable lids: for use, the waterproof lid can be easily removed or replaced with a lid with line outlet. This stainless steel lid can be clamped with the central screw, so it is safer from loss and vandalism.
Lid clampable with line outlet # 0003

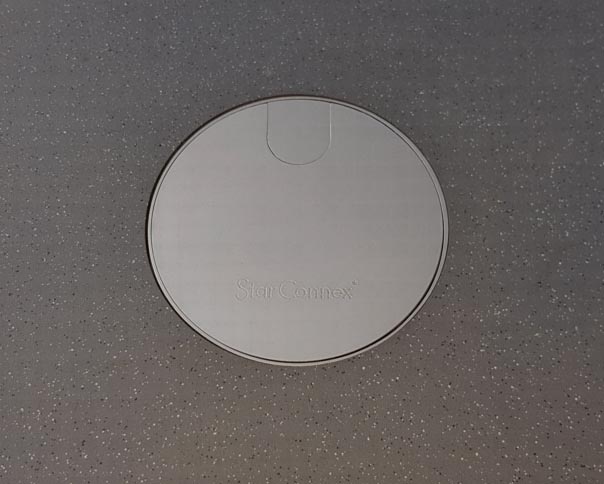

With this cover, the line outlet can be closed with a hinged flap IP44. It can be folded open inwards, avoiding a high ugly trip hazard. A small suction cup is required for removal, which protects the lid from unauthorized removal. Alternatively with screwdriver groove.
Cover with cable groove and flap # 0004

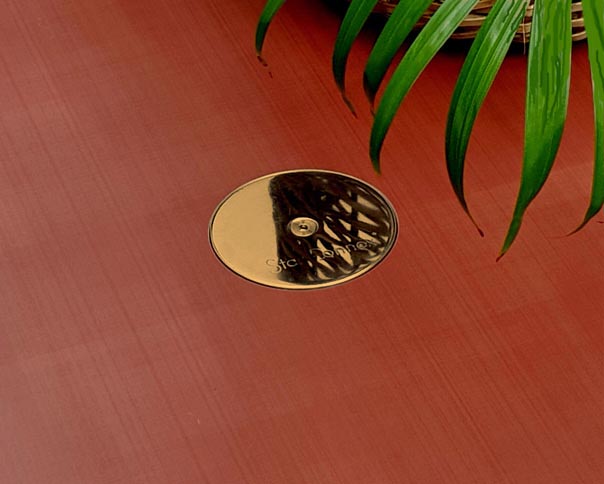

For floors made of white marble or warm-toned woods, for example, brass fittings can create a higher quality ambience. We also offer this option as a brass lid, satin-finished, ground in a neutral direction or polished. In combination with its absolute watertightness, this makes it ideal for yacht building. All lids are available in stainless steel, brass, and copper, polished on request.

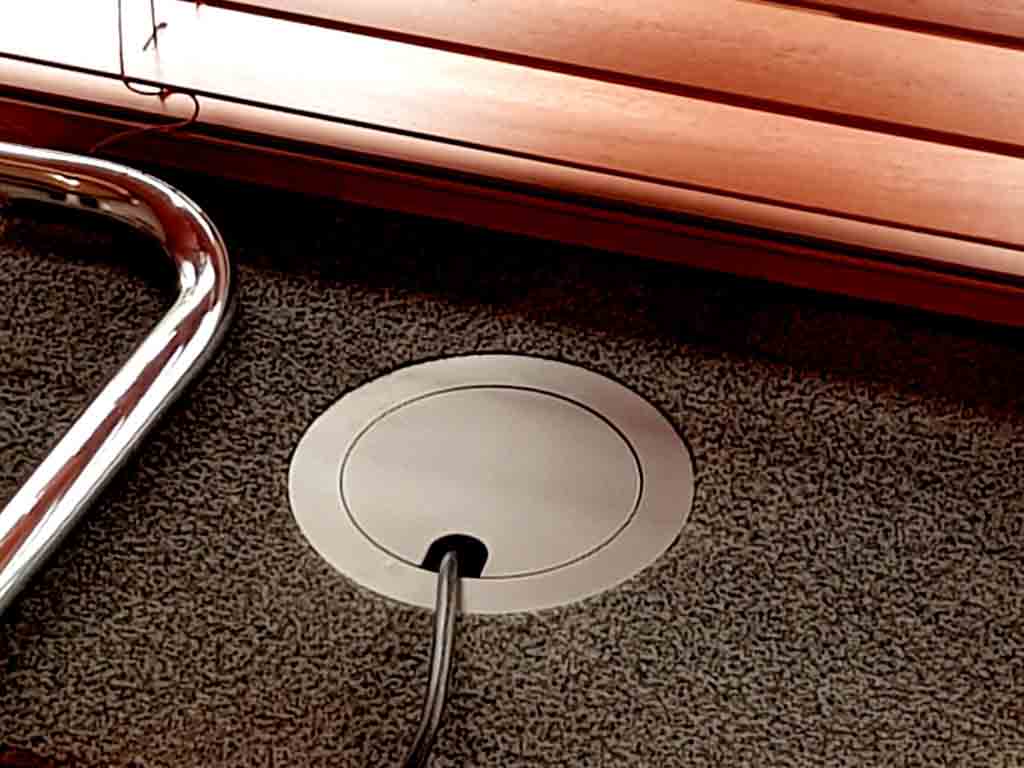

These carpet edgings can be easily inserted into the floor sockets. The outer diameter of the surround is 138 mm. Delivery includes an insert cover with cable outlet and a closed insert cover for removal with suction or optionally with screwdriver. Adapts to any new carpet thickness.
Set as accessory # 0006
Cover to be inserted loosely with lateral pipe outlet . In the photo also visible option drain with plastic pipe. For cases where a few raindrops could penetrate the cover with cable outlet.
Cover loose with cable outlet # 0007

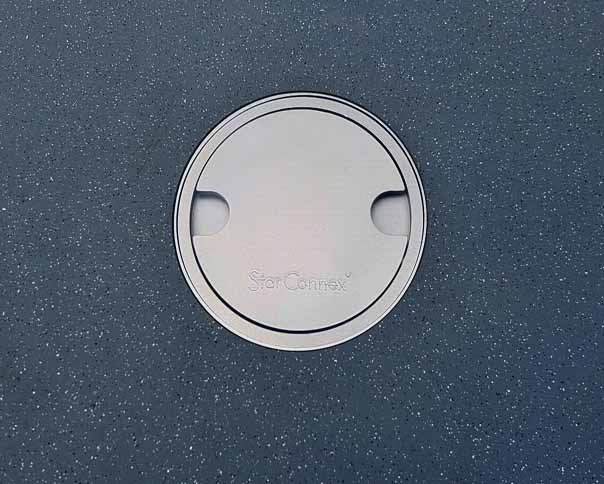

Where opening by unauthorised persons must not be avoided, this stainless steel screw cap, which can be operated without tools, is an alternative solution. Flood-tightness and traversability are also a matter of course here.
Screw lid with grip grooves # 0011.

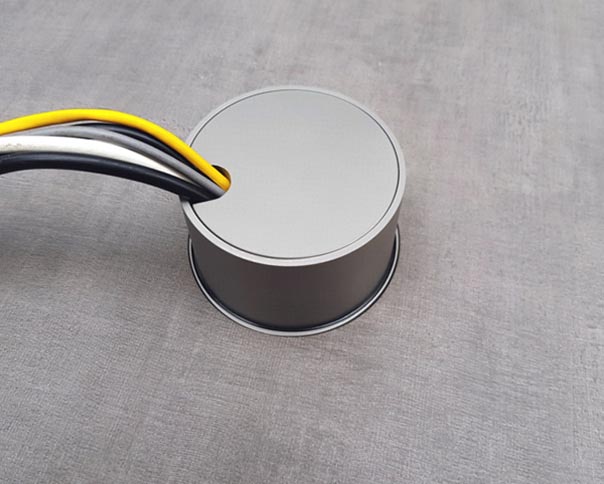

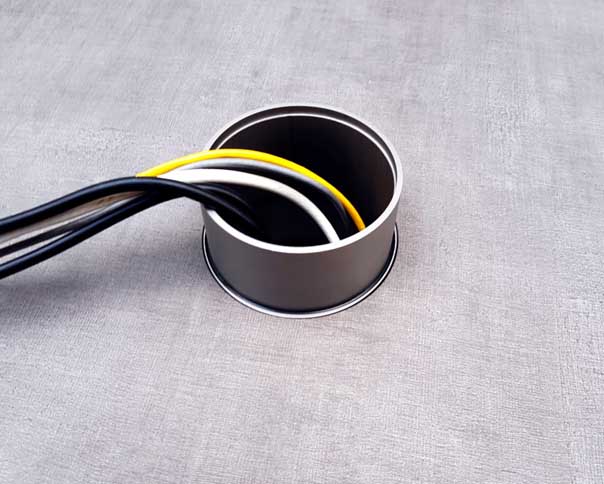

This cable dome can be inserted into the SUPER68 without tools to prevent surface water from running into the ground socket. A useful accessory in wet areas. Height above ground approx. 50 mm / 2".
Cable dome # 0009.
All covers presented here are also available for our cable domes and grommets. The high utility value of the SUPER68 lies not least in the comprehensive range of accessories. The cover designations are identical, with the addition "dome design".

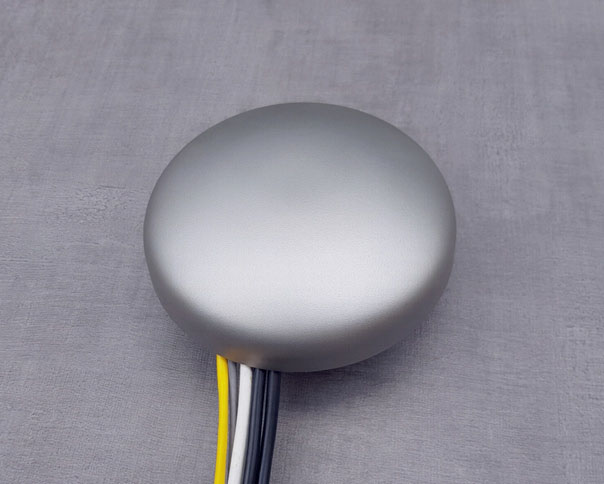

For outdoor use in rain and snowfall, this rain canopy, which can be attached to the cable dome without tools, offers secure protection. The rain canopy is also available at the same price as the truck-proof version. It also offers absolute protection for the connected cables against vehicles of all kinds driving over the outlet.
Canopy # 0010.

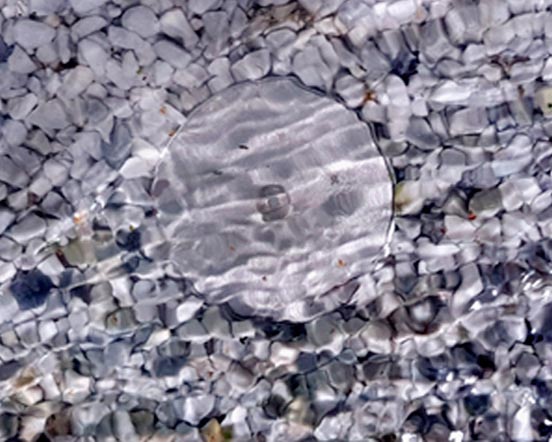

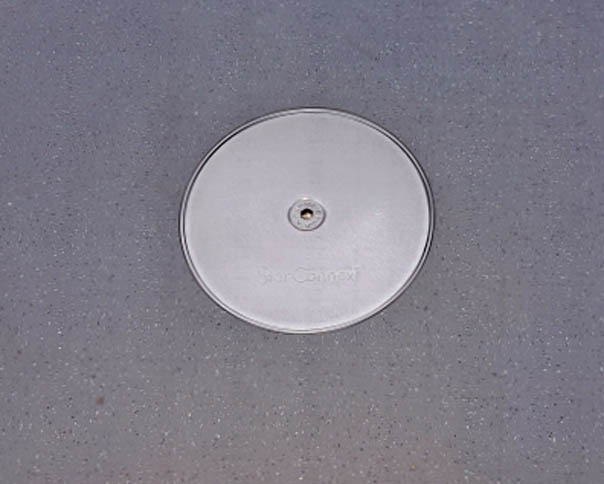

Closed, our socket cover # 0000 is underwater-proof IP68 and is therefore suitable for flood-prone locations, wet cleaning machines and outdoor areas. By the way, products of the class "waterproof IP67" are only splash-proof, rising water runs in. This cover showes here is truly floodwaterproof.
Lid flood proof IP68 # 0000.

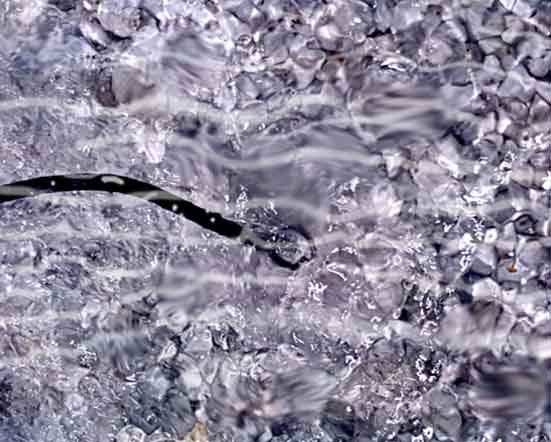

For longer use in outdoor areas or other wet areas, for example in industry, covers with up to 4 IP68 waterproof cable glands are available as accessories, for example for illuminating Christmas trees or in swimming pool areas. The plugs do not have to be removed to feed through the outlets.
Lid with IP68 flood proof cable outlets # 0008.
All StarConnex floor sockets described above are car-resistant even without being set in concrete, provided that the superimposed loads can be transferred into the ground.

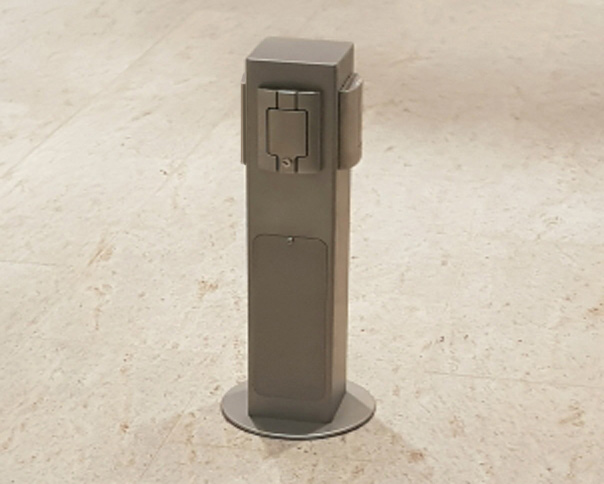

Removable electrants give your areas additional flexibility. They can be easily clamped onto the SUPER68-VA version and removed just as quickly. Power is supplied via the sockets or supply lines in the floor box. Due to modular technology the electrants can be equipped variably, we execute the heights according to your requirements.
Requested Housing SUPER68-VA # 0250
Electrants you will find described on
